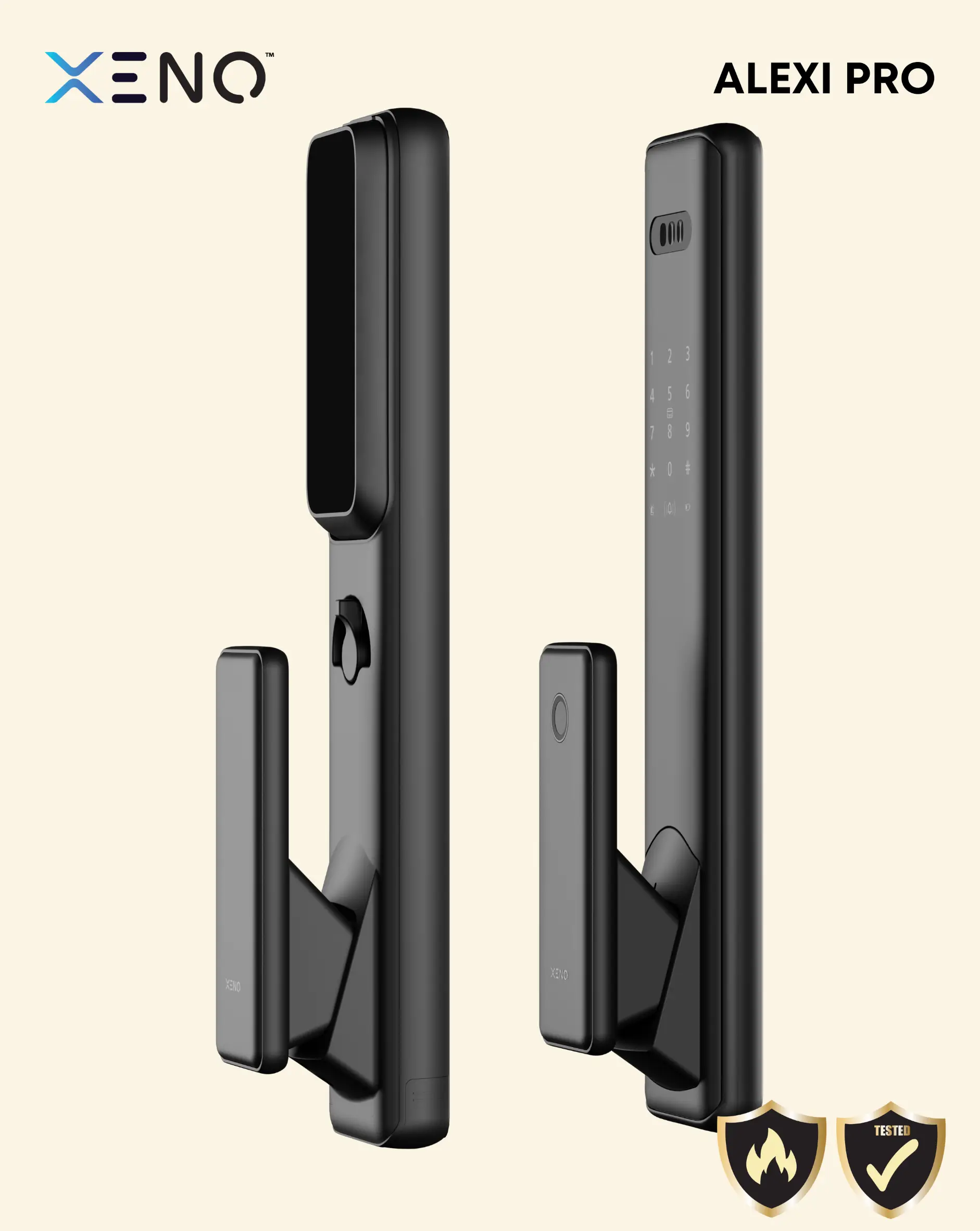

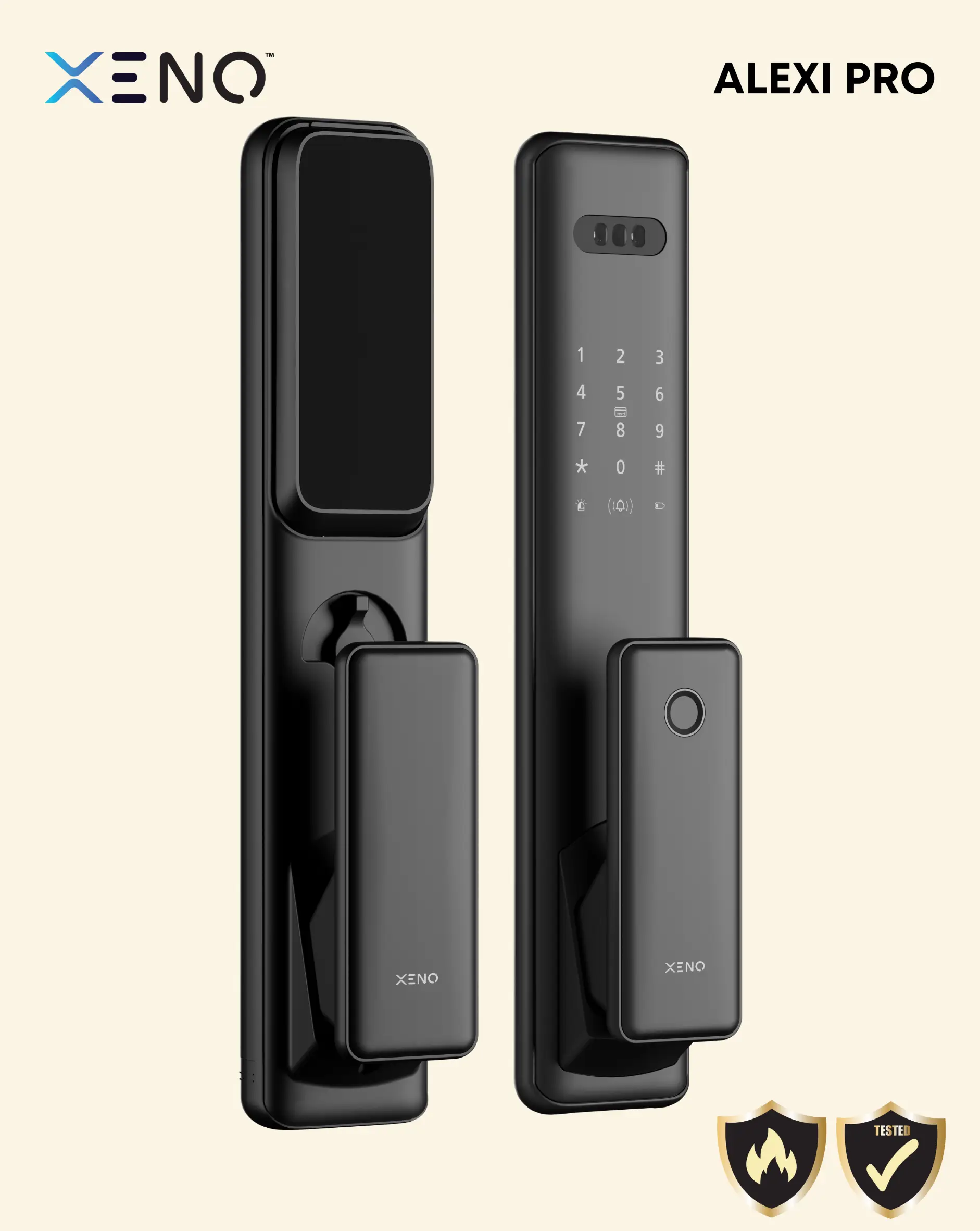

Xeno Alexi Pro Fire Rated Smart Door Lock

Description

Authentication & User Access

Face Recognition Capacity: Up to 100 users
Password Capacity: Up to 100 sets
Fingerprint Capacity: Up to 100 fingerprints
Card Capacity: Up to 100 cards
Total User Capacity: Maximum 200 users
Unlocking Methods: Facial Recognition, Fingerprint, Password, Card, Mechanical Key, Synchronized Unlock , Mobile App, Remote Control (Optional)
Unlocking Records: Stores up to 500 access records

Power & Backup

Battery Power Supply: 5000mAh Lithium-Ion Battery
Emergency Power Supply: 5V Portable Power Bank (Type-C Port)
Mechanical Key Access: Yes
Low Battery Alarm: Activates when voltage falls below 7.2V
Operating Voltage: 7.4V

Biometric & Password Features

Fingerprint Sensor Type: Semiconductor Sensor (508 DPI)
False Rejection Rate (FRR) : Less than 3%
False Acceptance Rate (FAR): Less than 0.001%
Fingerprint Matching: 1: N, Matching Time ≤ 0.8 seconds
Password Type: Numeric Touch Password
Password Length: 6 to 10 digits (Supports 16-digit Fake Password for added security)

Design & Construction

Front Panel Size: 394 x 78.5 x 61.75 mm
Back Panel Size: 394 x 78 x 64.75 mm
Material: Aluminium Alloy
Colour Options: Nano Black / Amber Gold
Handle Type: Push-Pull Fixed Handle
Number Pad: 12 Touch Buttons + 1 Doorbell Button

Facial Recognition

Camera Type: IR Camera, 200W Megapixels
Recognition Speed: Less than 1 second
Optimal Recognition Distance: 40 – 90 cm
Facial Recognition FAR: Less than 0.0001%
Facial Recognition FRR: Less than 1%

Camera & Monitoring

IR Camera Angles: Horizontal: 82°, Vertical: 66°, Diagonal: 95°
Colour Camera Angles: Horizontal: 96°, Vertical: 77°, Diagonal: 115°

Connectivity & Controls

Wi-Fi Connectivity: 2.4G Wi-Fi Support
Remote Control: 433 MHz Remote Control (Optional)
Synchronized Unlock: Yes – Built-in Module Supports Two-Way Unlock
Standalone Doorbell: Yes
Motion Detection: Advanced LiDa (Light Detection and Ranging) Technology
App Features: Loitering Capture, Access & Alarm Records, Temporary Passwords, User Management
Tuya Mobile App: Simply open via Bluetooth on your phone – easy setup and quick access to history!

RFID Features

RFID Card Type: ISO/IEC 14443A Type A, M1
RFID Chip: BF5823AM48 Integrated Chip
Card Reading Distance: 0 – 5 mm
Card Response Time: Less than 1.5 seconds

Mechanical & Build Specifications

Main Latch Load: Lateral: 8000N, Axial: 6000N
Flip Latch Load: Lateral: 6000N
Mortise Type: Mechatronic Fully Automatic Rotating Latch Mortise
Top & Bottom Hooks: Fixed Hooks (Optional)

Security & Alarm Features

Alarm Types: Anti-theft, Low Voltage, Multiple Wrong Attempts, Anti-Hijacking, Failed Lock
Electrostatic Protection: Grade IV
Corrosion Resistance: Grade II, 96 Hours Neutral Salt Spray Test
Operating Temperature: -25℃ to 70℃ (Condensation-Free)
Operating Humidity: 25%RH – 93%RH (Condensation-Free)
Anti-Theft Lock Grade: GA 374-2019 Grade B

Certifications & Standards

Execution Standard: GA 374-2019 (Security Grade B, Environmental Grade II)

Fire Resistance

Fire Resistance: Yes, Fire-Rated for up to 60 Minutes

Warranty Information

Total Warranty: 2 + 1 Years
Coverage: 2 Years Onsite Warranty + 1 Additional Year for Spare Parts (Transport & Labour Chargeable)
