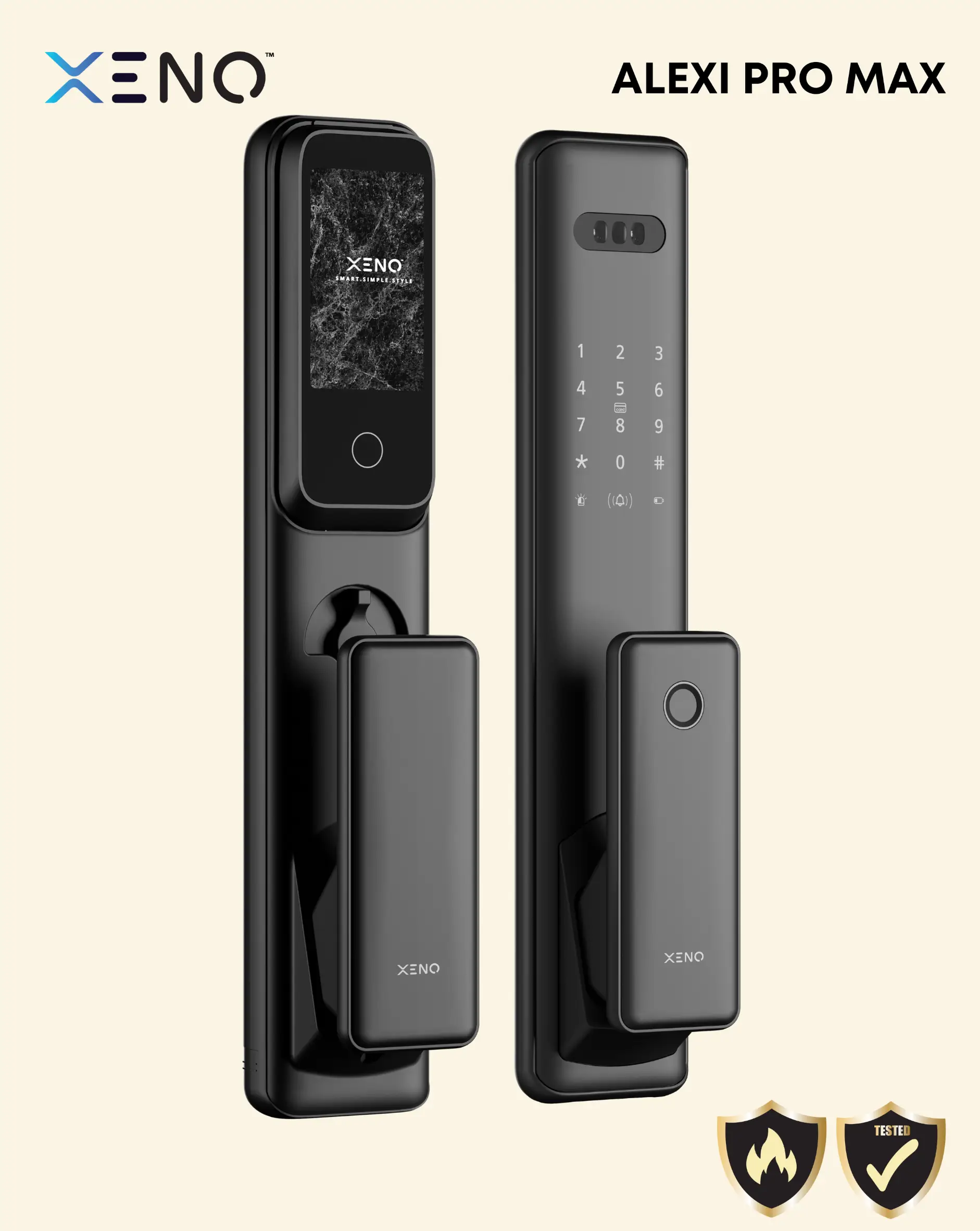

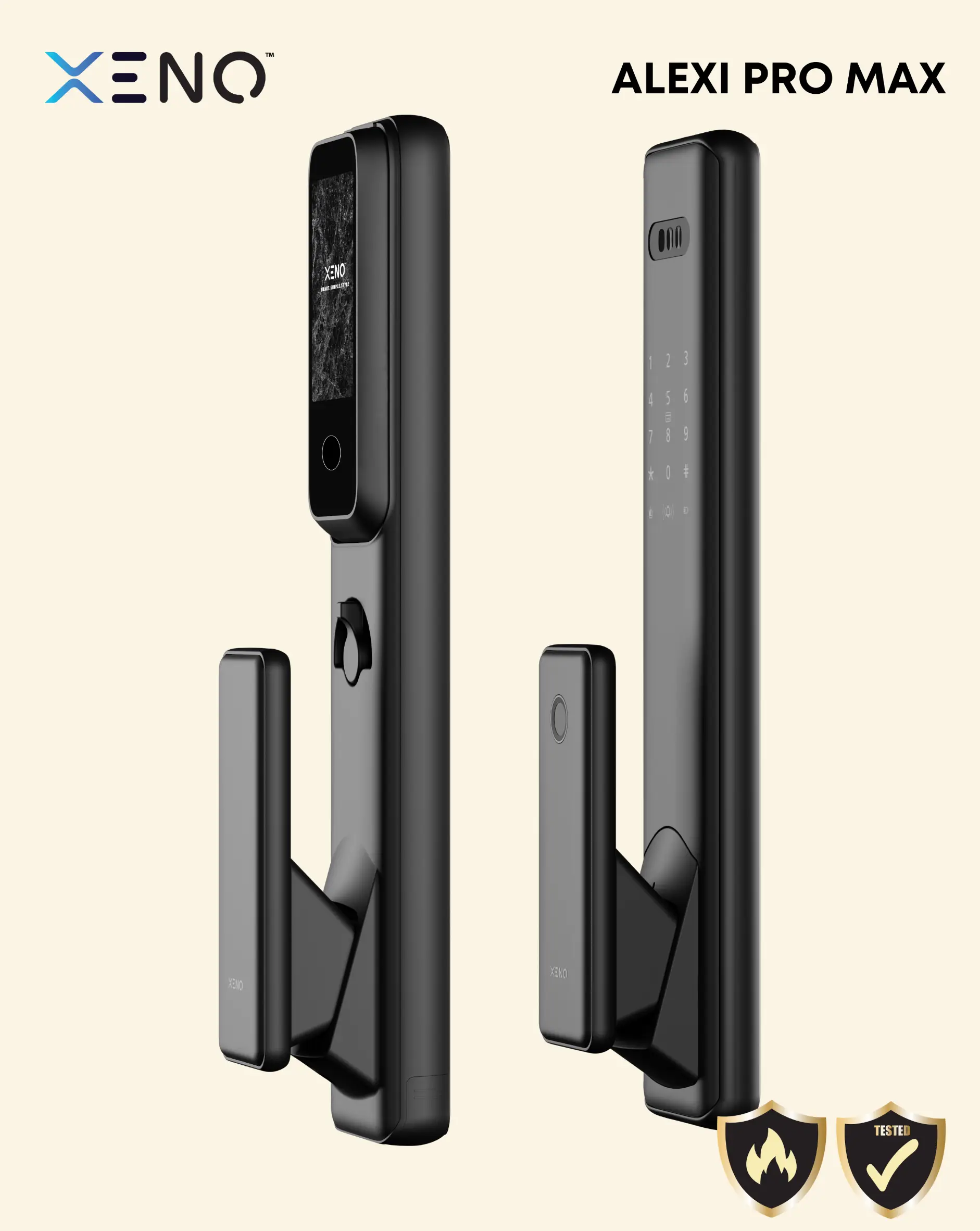

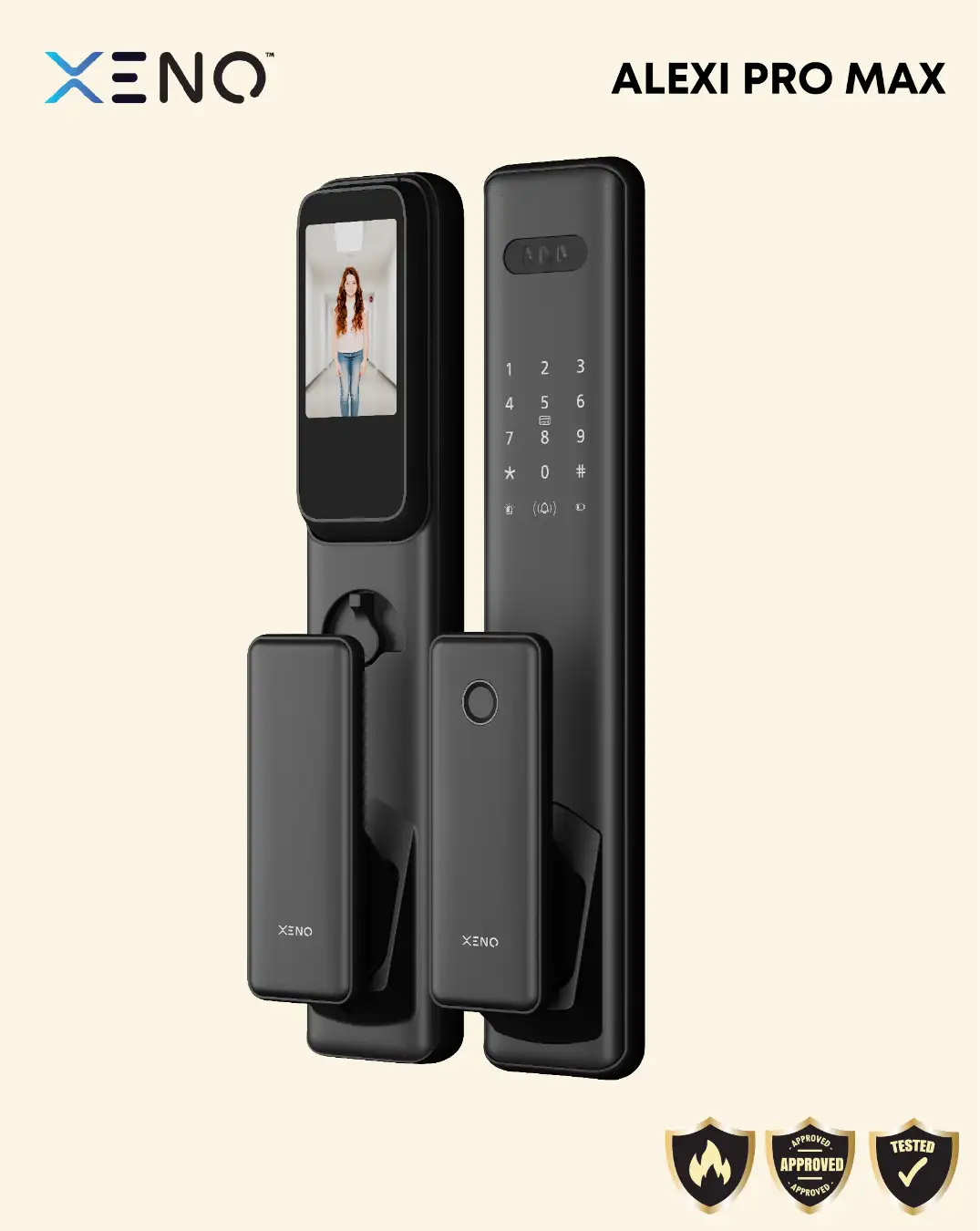

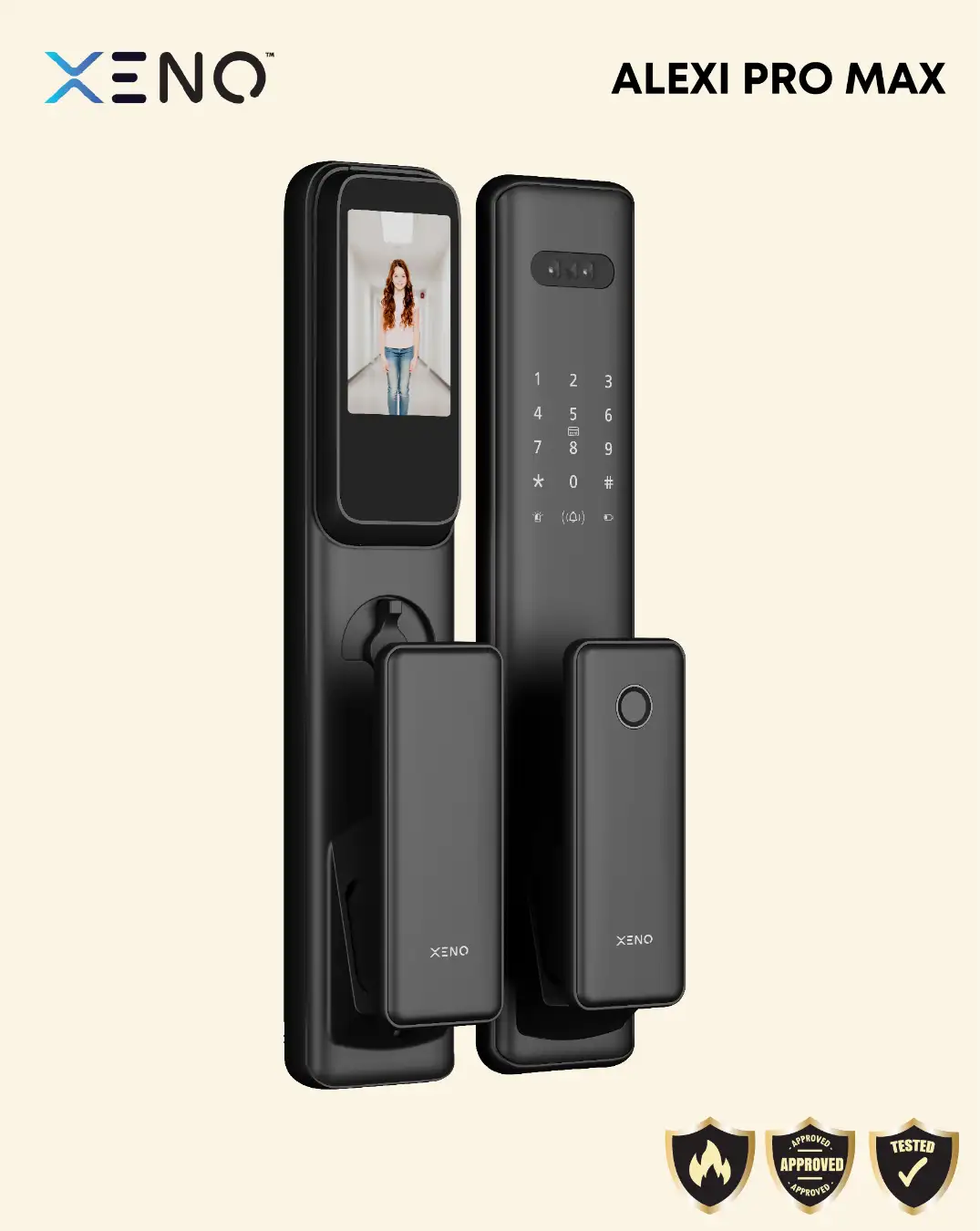

Xeno Alexi Pro Max Fire Rated Smart Door Lock

Description

Built to Last – Corrosion-resistant design made for Singapore’s humid climate!
Video Intercom with display screen for a smarter, more secure entry experience.
Multiple alarm types: – Anti-Theft, Low Voltage, Multiple Wrong Attempts,  Anti-Hijacking, Failed Locking, Low Battery
Easily manage everything via Tuya Mobile App – connect through Bluetooth, adjust settings, and view history on your smartphone.
 Secured access with both master and user passwords.
Comes with a standalone doorbell for added security.
Random number PIN entry helps prevent password theft.

Design & Build Highlights
Front Panel Size: 394 x 78.5 x 61.75 mm
Back Panel Size: 394 x 78 x 64.75 mm
Material: High-strength Aluminium Alloy
Colour: Elegant Nano Black
Handle Type: Push-Pull Fixed Handle for smooth entry
Touchpad: 12 touch buttons with an integrated doorbell button
Display: 3.97” IPS screen with 480 x 800 resolution
Finish: Stylish, modern design that looks as good as it performs

Palm Vein Recognition
Optimal Scanning Distance: 13 – 25 cm
False Acceptance Rate (FAR): < 0.0001%
False Rejection Rate (FRR): < 1%
Technology: Advanced 3D Palm Vein for high-security, minimizing false positives

Fingerprint Recognition

Sensor Type: Semiconductor (508 DPI)
False Acceptance Rate (FAR): < 0.001%
False Rejection Rate (FRR): < 3%
Matching Speed: 1:N, ≤ 0.8 seconds

Password Access
Type: Numeric Touchscreen
Length: 6 – 10 digits (supports up to 16 digits with fake password for added security)

Smart Authentication & Access Control
Palm Vein Access: Up to 100 users
Face Recognition: Stores up to 100 users
Fingerprint Access: Register up to 100 fingerprints
Password Entry: Save up to 100 custom codes
RFID Cards: Supports up to 100 cards
Total User Capacity: Maximum of 300 users
Unlocking Methods: Palm vein, face scan, fingerprint, password, RFID card, physical key, synchronized unlocking, mobile app, and optional remote control
Unlock History: Tracks up to 500 access records
App Features: Unlock with a tap, track activity in real-time, and manage users from anywhere

Connectivity & Controls
Video Intercom: Real-time two-way communication with remote monitoring and unlocking via mobile app
Wi-Fi: Supports 2.4GHz connection
Remote Control: Optional 433 MHz remote control support
Synchronized Unlock: Yes, with built-in module enabling two-way unlocking
Standalone Doorbell: Included
Motion Detection: Advanced LiDa (Light Detection and Ranging) technology
App Features:
Two-way Video Intercom
AI Loitering Capture
Door & Alarm Activity Log
Temporary Password Management
User Access Control
Enhanced Security: AI-driven loitering detection sends instant alerts and saves snapshots of suspicious activity directly to the app.

Camera & Monitoring
Infrared (IR): H82° × V66° × D95°
Colour Camera: H96° × V77° × D115°
Video Capture: Automatically records video clips and snapshots of visitors or any unauthorized access attempts

Power & Backup
Palm Recognition: Engineered for low power consumption from the palm vein module
Battery Supply: Dual 5000mAh Lithium-ion batteries (Total: 10,000mAh)
Emergency Power: 5V Type-C portable power bank supported
Low Battery Alert: Activates when power drops below 7.2V
Operating Voltage: 7.4V
Power Efficiency: Intelligent power-saving protocols ensure extended standby time

Facial & Palm Vein Recognition
Optimal Distance: 13 – 25 cm
False Acceptance Rate (FAR): < 0.0001%
False Rejection Rate (FRR): < 1%
Camera: IR Camera, 2MP (200W)
Recognition Speed: < 1 second
Optimal Distance: 40 – 90 cm
False Acceptance Rate (FAR): < 0.0001%
False Rejection Rate (FRR): < 1%
Smart Feature: Accurately identifies palm veins and faces even in complete darkness using intelligent infrared (IR) technology.

Mechanical & Build Specifications
Main Latch Strength: Lateral Load: 8000N, Axial Load: 6000N
Flip Latch Strength: Lateral Load: 6000N
Mortise Type: Mechatronic fully automatic rotating latch mortise
Top & Bottom Hooks: Fixed (Optional)
Electrostatic Protection: Grade IV
Corrosion Resistance: Grade II (Neutral Salt Spray: 96 Hours)
Operating Temperature: -25℃ to 70℃ (Condensation-Free)
Operating Humidity: 25%RH to 93%RH (Condensation-Free)
Anti-Theft Rating: GA 374-2019 Grade B
Durability: High-performance internal motor with robust actuator ensures long-term, reliable operation

RFID Features
Access Method: Supports RFID access with secure Palm Vein backup authentication
Card Type: ISO/IEC 14443A Type A, M1
RFID Chip: BF5823AM48 Integrated Chip
Reading Distance: 0 – 5mm
Response Time: Less than 1.5 seconds
Security: Encrypted RFID system to safeguard against card cloning and unauthorized access

Fire Resistance
Fire Resistance: Yes, tested up to 60 minutes of fire protection.

Certifications & Standards
Execution Standard: Complies with GA 374-2019, rated Security Grade B and Environmental Grade II.

Warranty
Total Coverage: 2 + 1 Years
Details: First 2 Years: Full onsite warranty (includes parts and labour)
3rd Year: Spare parts coverage only (transport and labour charges apply)
